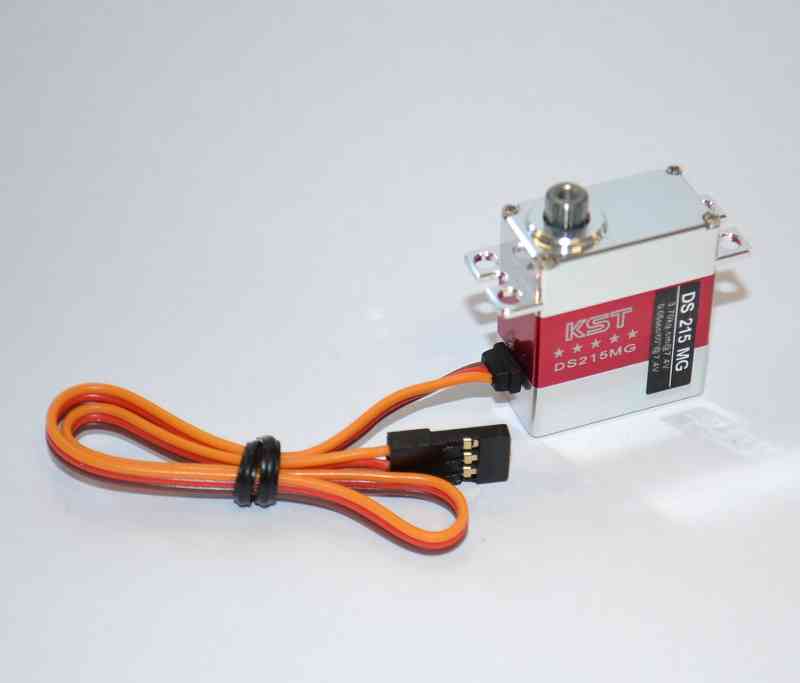

KST DS215MG V3.0 Stainless Steel Gear Digital Servo For 450 380 480 500 RC
This is the KST DS215MG Micro Digital Servo, for Cyclic and Tail use. Looking for speed in a micro package? The KST DS215MG is lightning fast, high voltage compatible and comes in a beautiful aluminum case. Power comes via a coreless motor, running on silky smooth bearings with all metal gears. For the ultimate in speed and accuracy, turn to the DS215MG for your demanding needs.
As time has progressed, KST has done additional development on the gear train of the 215 servo, and changed the servo gear material used to Stainless Steel, from Aluminum. This means that the metal gear train will be much more durable than previous versions, improving durability greatly.
- Micro size aluminum case
- Full metal gears
- Dual ball bearings
- HV compatible
- Lightning fast
- Coreless motor
Operating Voltage: 6-7.4V
Torque: 3.10kg.cm @ 6.0V; 3.70kg.cm @ 7.4V
Speed: 0.06sec/60° @ 6.0V; 0.05sec/60° @ 7.4V
Working Frequency: 1520us/333Hz, 800us - 2200us
Ball Bearing: 2BB
